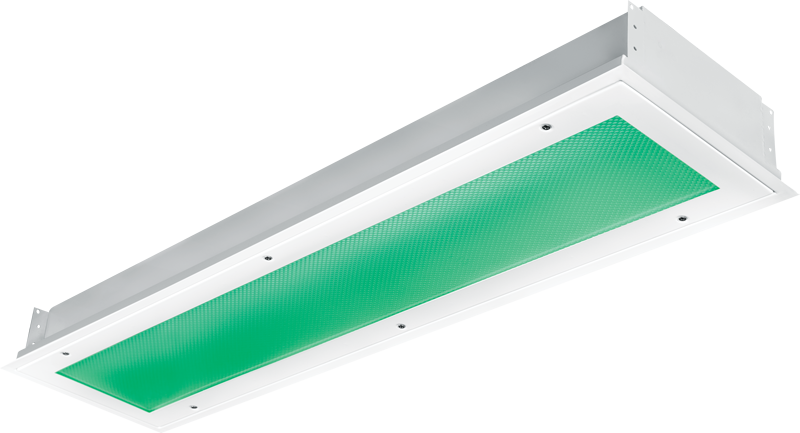

MST MIL-Spec Medical Surgical Troffer

Features

  • Designed to meet the demanding requirements of controlled environments
  • Specify green circuit to enhance visual clarity for the surgical team
  • Seam-welded housing and door frame for infection-controlled environments
  • Optimized lensing reduces shadowing and glare
  • Multiple distribution options provide effective, application specific lighting performance
  • Smooth surface doorframe and lens materials simplify cleaning and maintenance
  • NSF approved closed cell foam gasketing seals the fixture for particle sensitive environments
  • Designed to accommodate 2" tall T-bar
  • Complies with MIL-STD-461G conducted emission regulations
  • IP65 and ISO 5, Class 100 rated to meet demanding environments
  • Anti-microbial white finish standard
  • High-performance up to 140 lm/W
  • 1x4, 2x2, and 2x4 sizes available
  • Optional triple gasket protects against contaminant ingress
  • Optional tamper-resistant screws secure door frame
  • Buy American Act compliant
  • Made Right Here® in the USA

Tools

Quantity Estimator

Estimate fixture quantities and light levels.

Product Builder

Configure fixtures and streamline the ordering process.

Use your zip code to find your local agent.

Specifications

Housing

20-gauge die-formed, seam-welded C.R.S. Aluminum and stainless steel options available.

Door Frame

One-piece 20-gauge seam-welded C.R.S. Hinged from one side with stainless steel safety cables. Attached to fixture using captive, stainless steel screws.

Shielding

Frosted Acrylic .125 thick Pattern #12 with clear acrylic underlay.

Finish

92% minimum average reflective white anti-microbial powder coating bonded to phosphate-free, multi-stage pretreated metal. All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion.

Electrical

High-quality mid-power LED boards. Rated for 50,000 hours at 70% lumen maintenance (L70).

Mounting

NEMA Type “G” 15/16″ or 1-1/2″ grid standard. Drywall flange type available.

Listings

• cCSAus certified as luminaire suitable for wet location under covered ceiling.
• IP65 rated
• ISO 5, Class 100 rated
• NSF/ANSI 2
• Complies with MIL-STD-461G with DIM or DRV drivers.
• City of Chicago Environmental Air approved (not available when specified with NSWH).
• Complies with the Buy American Act and other federal regulations. Request certification at hew.com/baa.

Warranty

5-year limited warranty, see details
