MDS Medical Surgical Troffer

Features

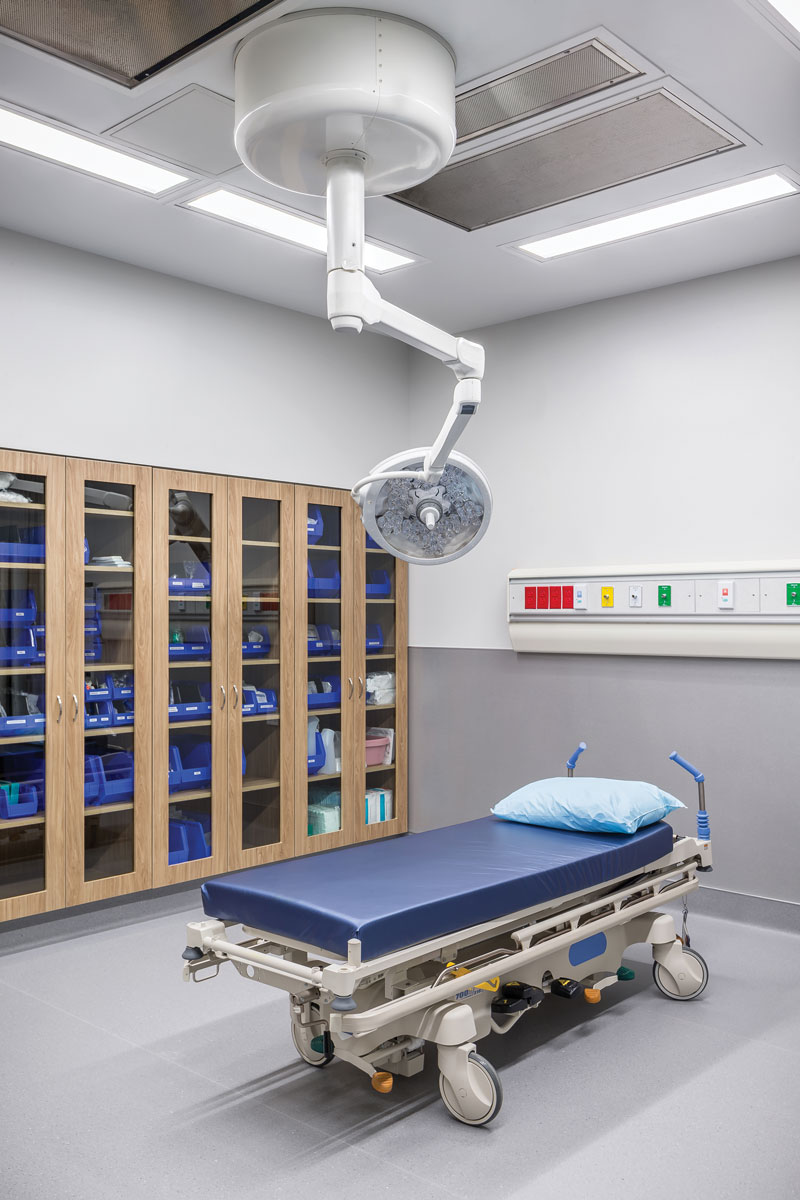

Provides auxiliary illumination from the perimeter of the operating room
Reduces harsh contrast between surgical and preparatory work areas
Optional triple gasket protects against contaminant ingress
Multiple distribution options provide effective, application specific lighting performance
Smooth surface doorframe and lens materials simplify cleaning

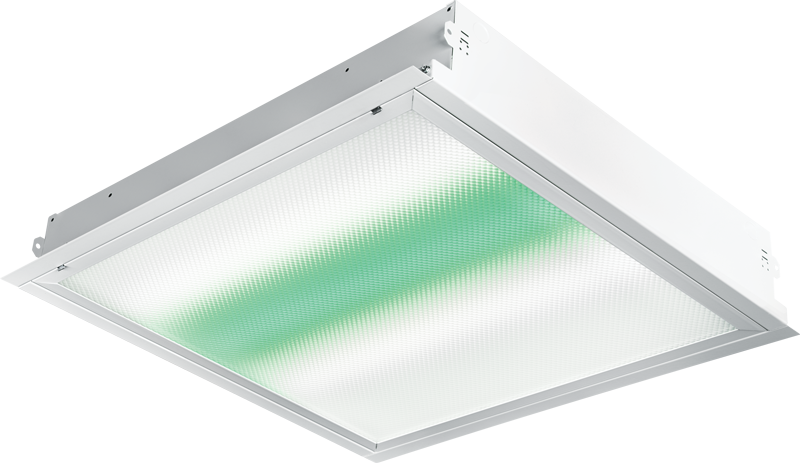

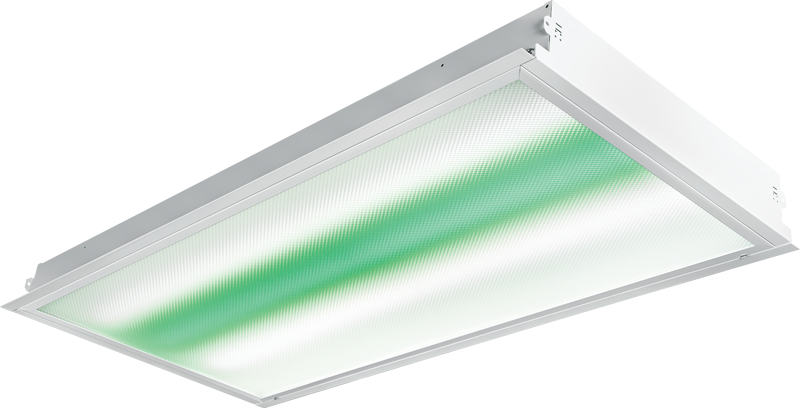

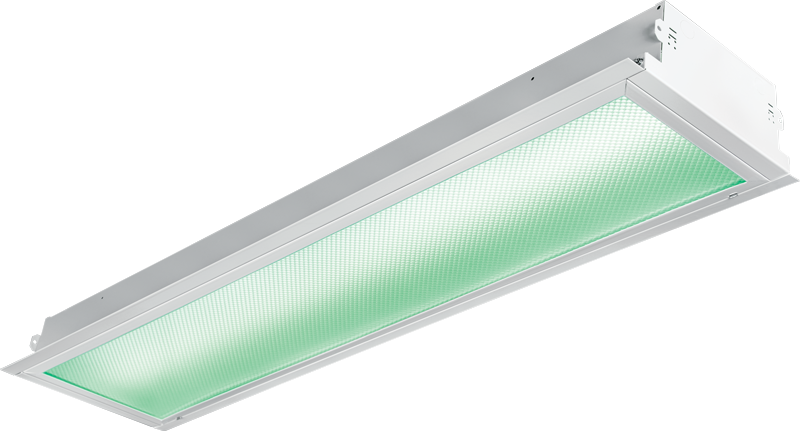

Optional green circuit provides enhanced visual clarity for operating room staff and reduces eye fatigue during videoscopic surgical procedures
Designed exclusively for hospitals and medical facilities utilizing 15/16′′, 1-1/2′′, and 2′′ face T-bars
Anti-microbial white finish standard
Supplies uniform ambient illumination for the remainder of the surgery room
High-performance up to 129 lm/W
Quick-wire access plate in back of fixture housing for easy attachment of incoming power supply

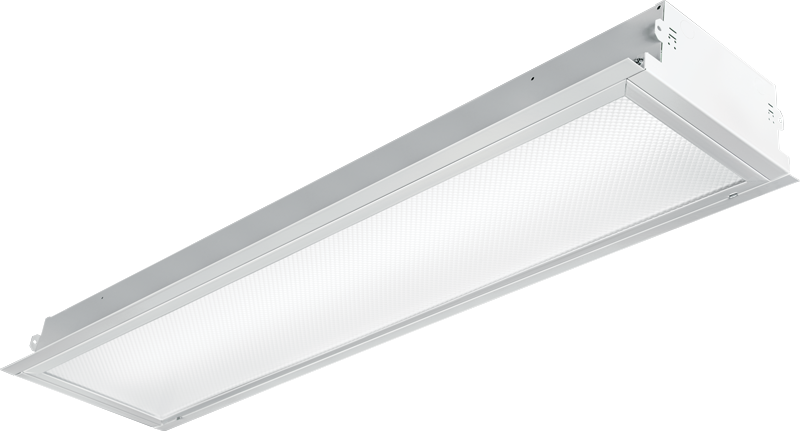

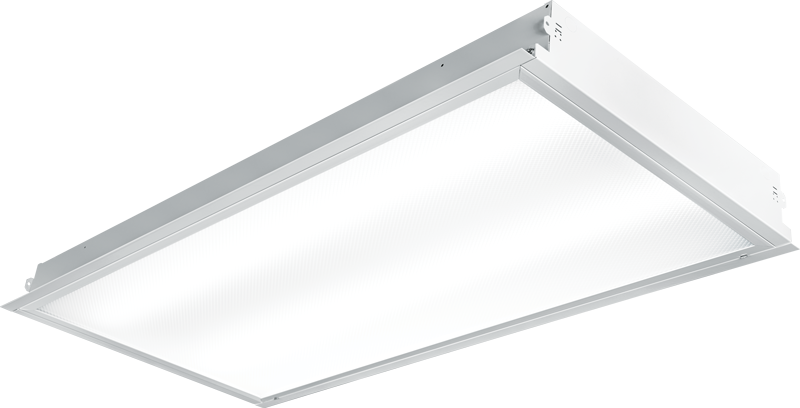

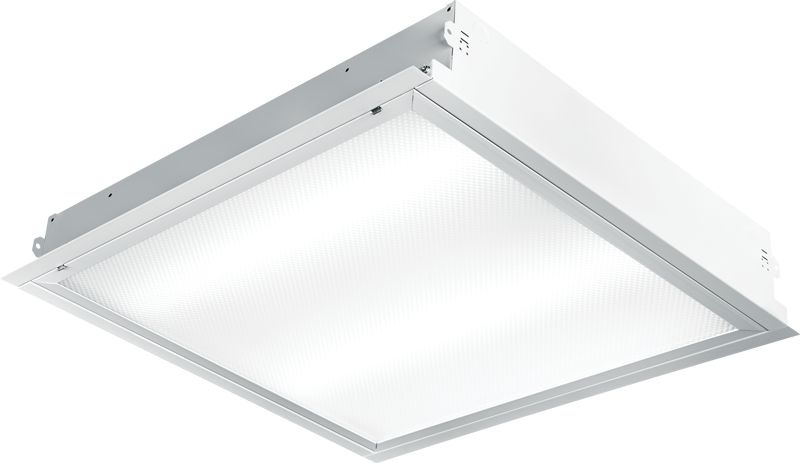

1x4, 2x2, and 2x4 sizes available
Deliver scalable, data-driven smart buildings with PoE-enabled fixtures and controls
Support human-centric design with adaptive, individualized lighting using tunable white light
Buy American Act compliant
Available with BIOS^® state-of-the-art LED white light circadian solutions
Made Right Here^® in the USA

Quantity Estimator

Estimate fixture quantities and light levels.

Product Builder

Configure fixtures and streamline the ordering process.

Use your zip code to find your local agent.

Housing	20-gauge die-formed C.R.S.
Door Frame	.050″ extruded aluminum, flat with mitered corners. Fully enclosed spring-loaded cam latches and T-type hinges. Door frame and lens are grounded to the fixture housing.
Shielding	One-piece frosted acrylic, pattern #12, .125′′ thick.
Finish	92% minimum average reflective white anti-microbial powder coating bonded to phosphate-free, multi-stage pretreated metal. All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion.
Electrical	High-quality mid-power LED boards. Rated for 50,000 hours at 70% lumen maintenance (L70)
Mounting	NEMA Type “G” 15/16″ or 1-1/2″ grid standard. (4) Earthquake clips provided. Drywall flange type available.
Listings	• cCSAus certified as luminaire suitable for dry or damp locations. • City of Chicago Environmental Air approved when specified with CP option. • Complies with the Buy American Act and other federal regulations. Request certification at hew.com/baa.
Warranty	5-year limited warranty, see details

Housing	20-gauge die-formed C.R.S.
Door Frame	.050″ extruded aluminum, flat with mitered corners. Fully enclosed spring-loaded cam latches and T-type hinges. Door frame and lens are grounded to the fixture housing.
Shielding	One-piece frosted acrylic, pattern #12, .125" thick.
Finish	92% minimum average reflective white anti-microbial powder coating bonded to phosphate-free, multi-stage pretreated metal. All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion.
Electrical	High-quality mid-power LED board. L70 > 60,000 hours per IES TM-21. Low-voltage DC fixture, to be fed by Class 2 power supply.
Mounting	NEMA Type “G” for 15/16″, 1-1/2″, and grid ceiling systems. NEMA Type “F” available. Four (4) earthquake clips standard.
Listings	• cCSAus certified as luminaire suitable for dry or damp locations. • Complies with the Buy American Act and other federal regulations. Request certification at hew.com/baa.
Warranty	5-year limited warranty, see details
System Requirements	• PoE-ready luminaires are connected to building power systems through network integration and require other components for complete PoE lighting system • For additional PoE info, see details • Consult factory for design support

Housing	20-gauge die-formed C.R.S.
Door Frame	.050″ extruded aluminum, flat with mitered corners. Fully enclosed spring-loaded cam latches and T-type hinges. Door frame and lens are grounded to the fixture housing.
Shielding	One-piece frosted acrylic, pattern #12, .125" thick.
Finish	92% minimum average reflective white anti-microbial powder coating bonded to phosphate-free, multi-stage pretreated metal. All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion.
Electrical	High-quality mid-power LED boards. L70 > 60,000 hours per IES TM-21. Tunable White products use LEDs of multiple CCTs and may produce a perceptibly different shade of white from single-CCT products at the same CCT. All CCTs are within 3 MacAdam ellipses.
Mounting	NEMA Type “G” 15/16″ or 1-1/2″ grid standard. (4) Earthquake clips provided. Drywall flange type available.
Listings	• cCSAus certified as luminaire suitable for dry or damp locations. • City of Chicago Environmental Air approved when specified with CP option. • Complies with the Buy American Act and other federal regulations. Request certification at hew.com/baa.
Warranty	5-year limited warranty, see details
