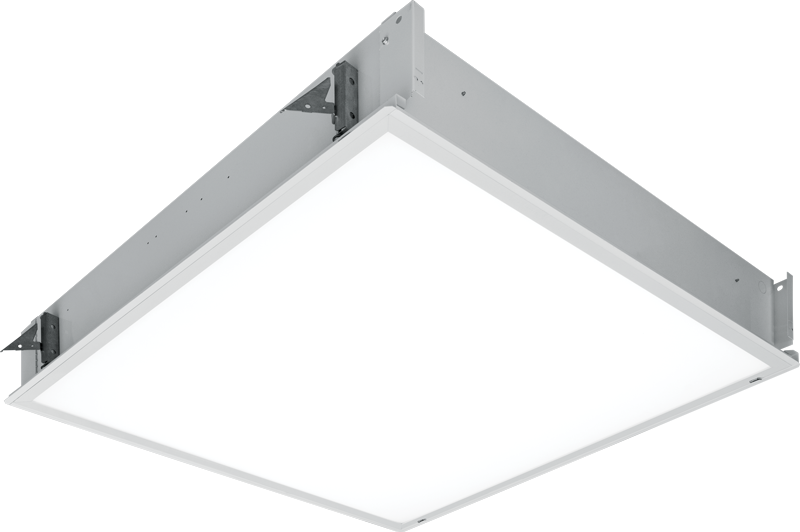

SQR Square Troffer

Features

  • Provides soft, smooth illumination in three perfectly square sizes
  • Combine 2′, 3′ and 4′ fixtures in your space to create a unique, modern ceiling
  • Large-format design complements the RND family
  • Design unique environments by combining sizes
  • Fully-enclosed spring-loaded cam latches allow years of hassle-free maintenance
  • T-slot steel hinge ensures positive retention when door is opened
  • Deep reinforcement ribs provide added strength
  • Rolled-edge channel adds superior strength
  • Integral T-bar clips quickly secure fixture to structure
  • Fully gasketed door minimizes contaminants
  • Frosted lens provides pleasing diffused light without LED pixelation
  • Double and triple gasketing options
  • Quick-wire access plate in back of fixture housing for easy attachment of incoming power supply
  • Variety of door frame options
  • Rated for direct contact with insulation
  • Buy American Act compliant
  • Wireless in-fixture control solutions available
  • Made Right Here® in the USA

Tools

Quantity Estimator

Estimate fixture quantities and light levels.

Product Builder

Configure fixtures and streamline the ordering process.

Use your zip code to find your local agent.

Specifications

Housing

.040″ thick die-formed aluminum with 22-gauge steel end plates.

Door Frame

.050″ extruded aluminum, flat or regress, with mitered corners. T-slot steel hinge allows reversible hinging and latching. Fully enclosed spring-loaded cam latches.

Shielding

KSH frostglaze, .125″ thick.

Finish

92% minimum average reflective white polyester powder coat bonded to phosphate-free, multi-stage pretreated metal. All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion.

Electrical

High-quality mid-power LED boards. L85 at 50,000 hours.

Mounting

NEMA Type “G” 15/16″ or 1″ grid standard. Drywall flange type available. (4) T-bar EQ clips standard.

Listings

• cCSAus certified as luminaire suitable for dry or damp locations.
• City of Chicago Environmental Air approved when specified with CP option.
• IC-rated for direct contact with insulation when specified with L113 lumen package or lower.
• Complies with the Buy American Act and other federal regulations. Request certification at hew.com/baa.

Warranty

5-year limited warranty, see details

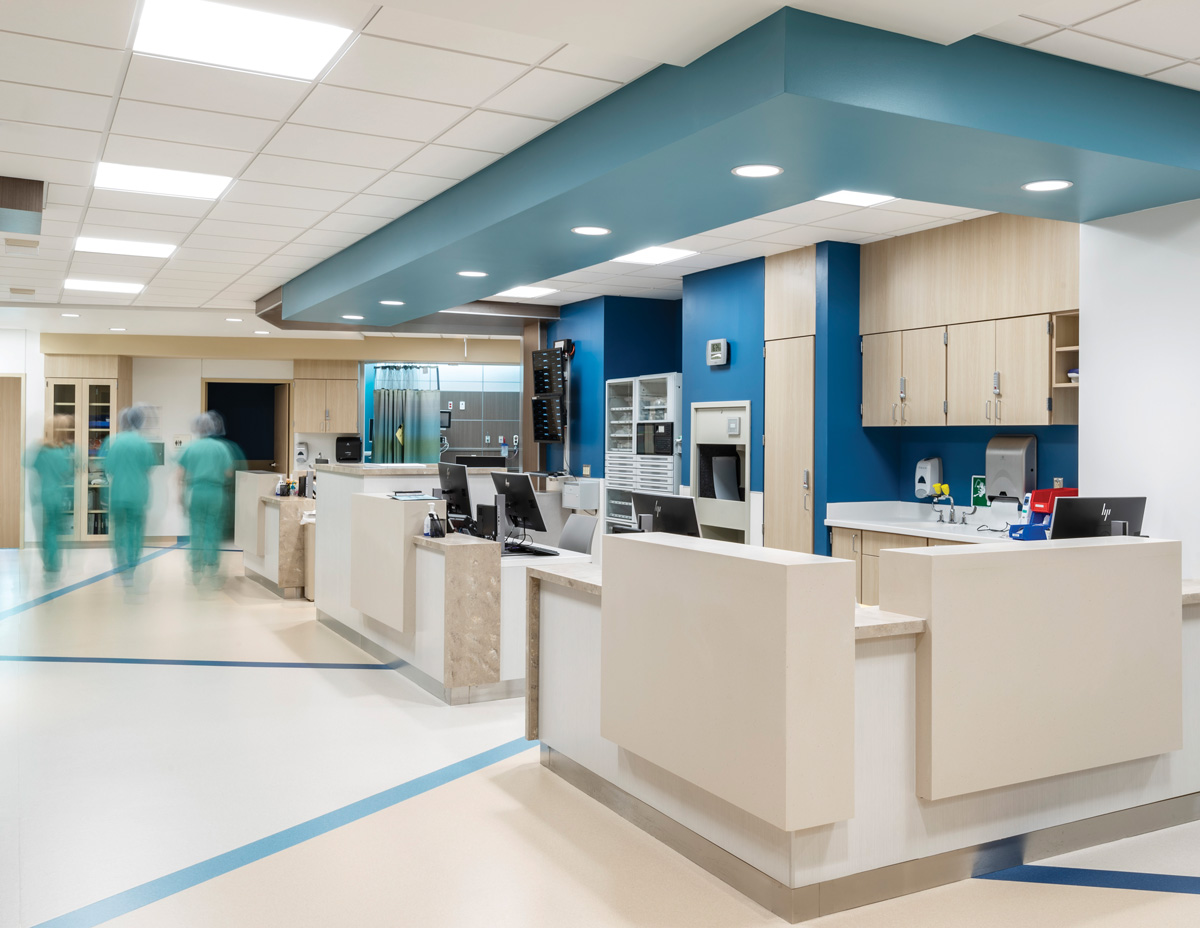

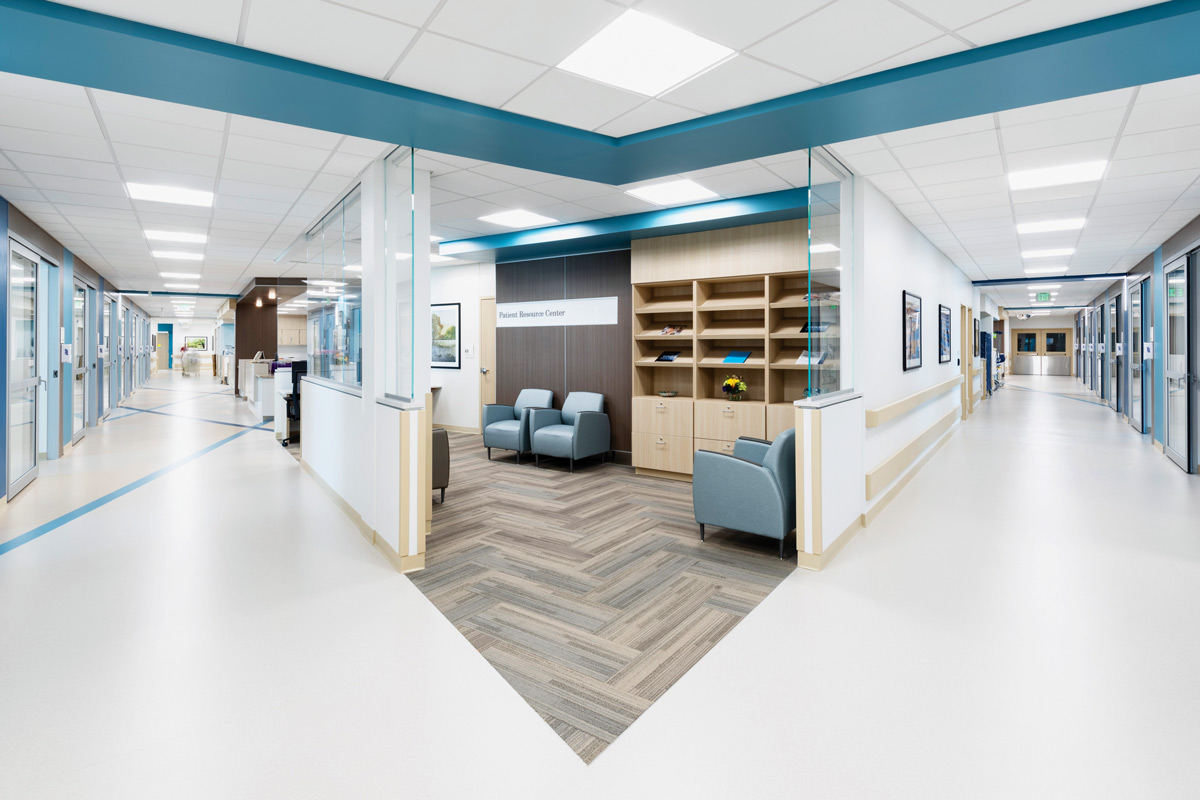

Inspiration
