EXIT/EL/RECESSED Recessed Edge-lit Exit Sign

Features

  • Compact, low-profile design
  • Battery and wiring accessible from room-side
  • UV-stabilized ultra-clear acrylic edge-lit panel provides consistent, uniform illumination
  • Available as full-time AC-powered unit or emergency unit with battery backup
  • EM unit provides 90 minutes of emergency operation
  • Dual circuit option (AC-only) allows connection to two different supplies at the same time
  • Ultra-bright, energy-efficient, long-life LEDs in red or green
  • Double face utilizes factory-installed silver or white mylar background panel
  • Fully automatic solid-state two rate charger on EM unit recharges battery in 24 hours
  • Charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing
  • Directional indicators can be installed on-site
  • Self-diagnostic option performs monthly, biannual and annual tests to ensure reliable operation and meets electrical and life safety codes

Tools

Product Builder

Configure fixtures and streamline the ordering process.

Use your zip code to find your local agent.

Specifications

Housing

Premium-grade, extruded aluminum housing.

Electrical

Dual 120/277 voltage standard. 4.8V long life, maintenance- free, rechargeable NiCd battery when specified with EM power option.

Mounting

Recessed. Compatible with drywall or drop ceiling installations. Bar hangers included. Wall mount available.

Listings

• UL 924 standard as an exit light suitable for dry or damp locations (0°C - +50°C).
• Meets NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.
• Certified to CEC under Title 20 Regulations.

Warranty

5-year limited warranty.

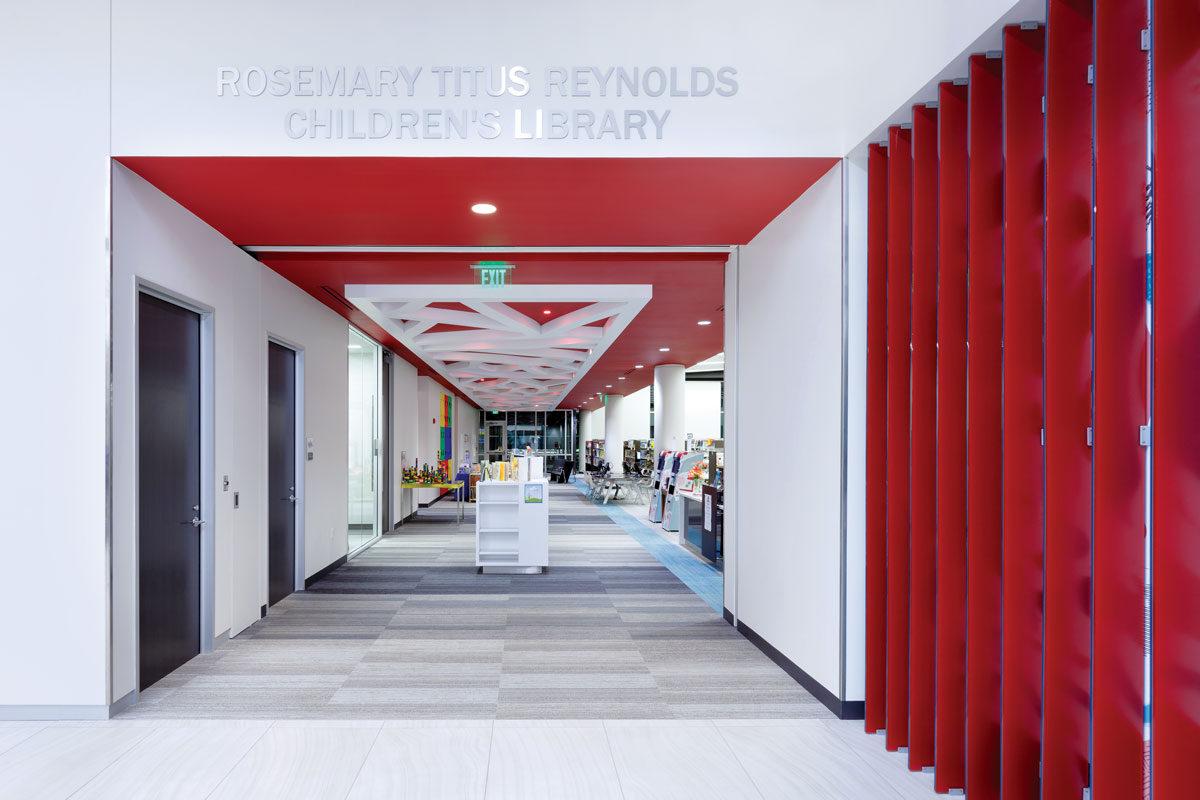

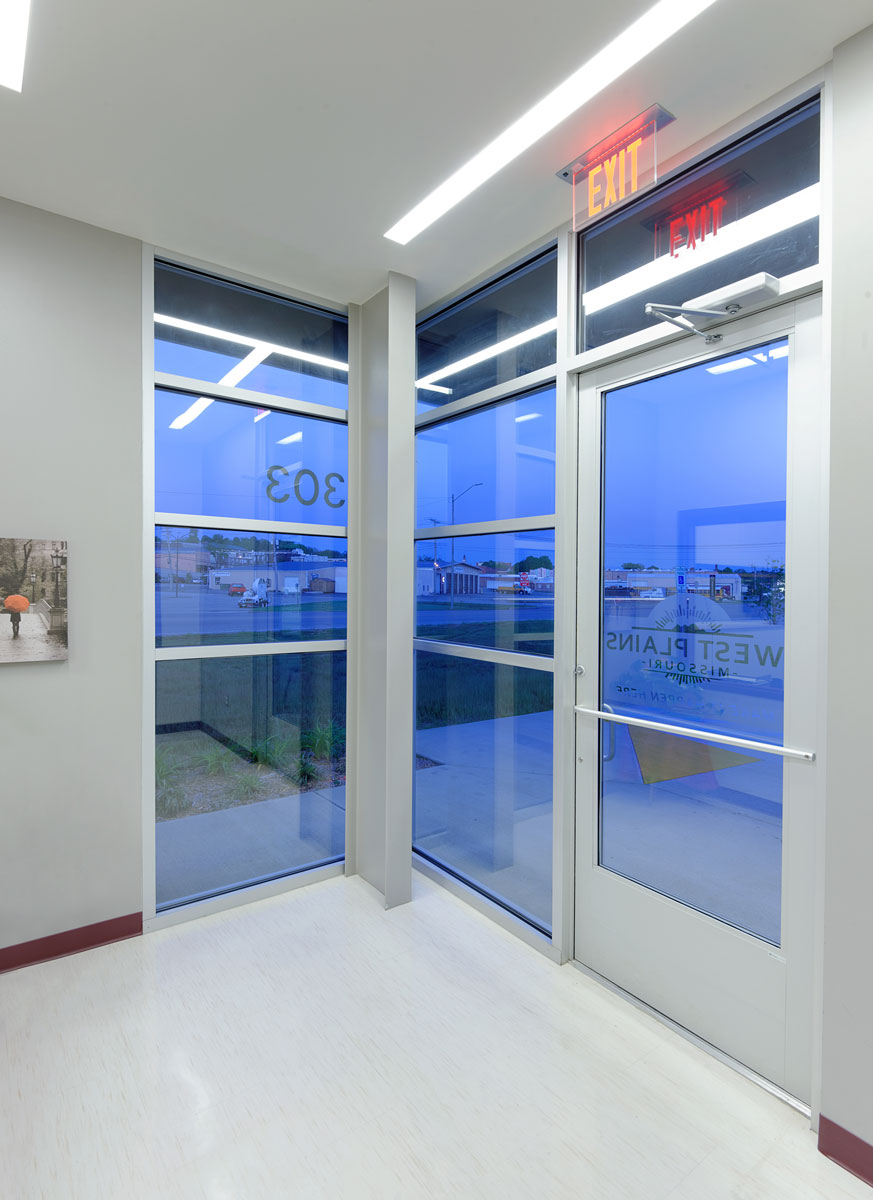

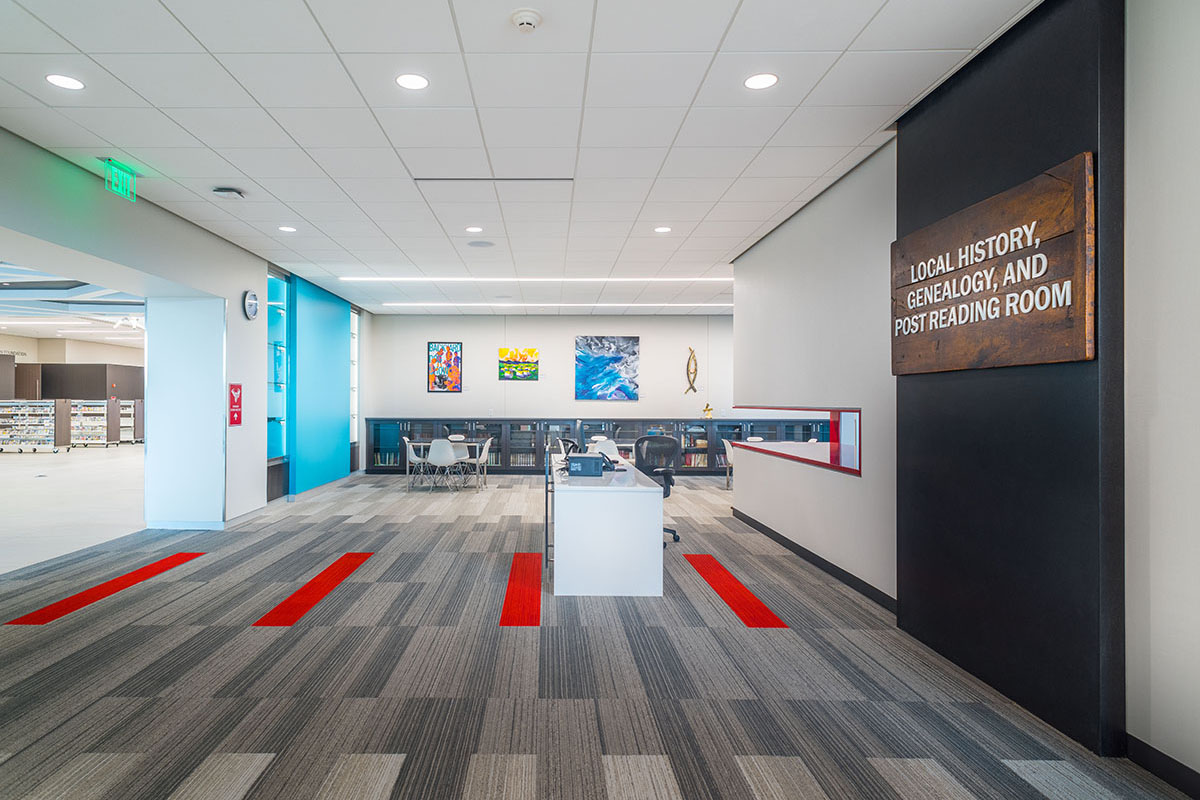

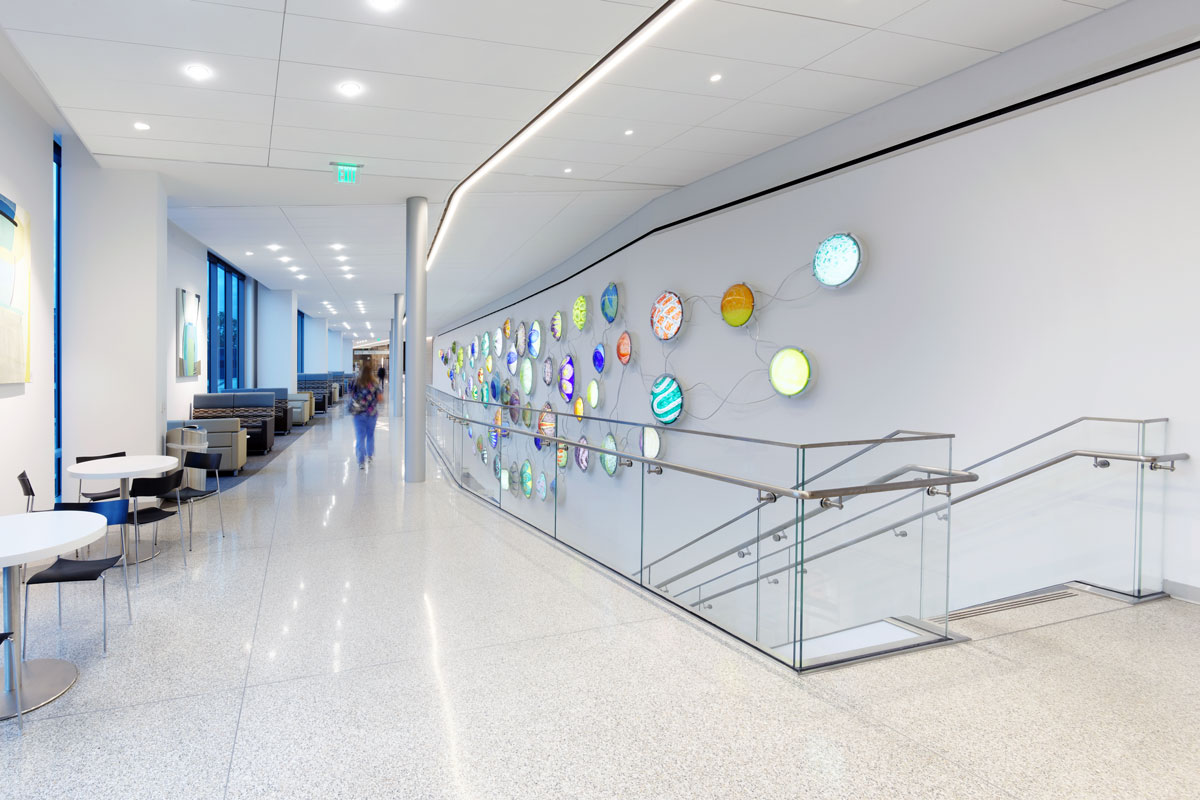

Inspiration
