AV10 Straight Round Aluminum Pole & Base

Features

  • Extruded pole shaft with cast aluminum structural base provides durability and resists corrosion
  • Designed to accommodate up to two fixtures on a pole top assembly with a maximum 36′′ O.C. fixture span
  • 8′ to 16′ height options
  • An assortment of finishes are available to complement the architectural elements of any outdoor space
  • Access door provides easy on-site maintenance

Tools

Product Builder

Configure fixtures and streamline the ordering process.

Use your zip code to find your local agent.

Specifications

Shaft

4″ O.D. straight round pole extruded from seamless 6000 series aluminum alloy.

Pole Top

Plate and tenon provided for top mount luminaire. Removable finial available for poles receiving drilling patterns for side-mount luminaire arm assemblies.

Finish

Polyester powder coat bonded to pretreated metal, meets AAMA 2604 specifications for outdoor durability.

Access Door

Located on structural base. Grounding provision provided.

Anchor Bolts

Conform to ASTM F1554 Grade 55, galvanized a minimum of 12″ on the threaded end.

Mounting

Structural base cast from 356 alloy aluminum. The pole is inserted and welded into the structural base casting. The completed assembly is heat-treated to a T6 temper. A mounting template is provided with each pole and anchor bolt order.

Finishes

Black

Green

Medium Bronze

Dark Bronze

Satin Aluminum

Gray

White

200+ RAL Colors

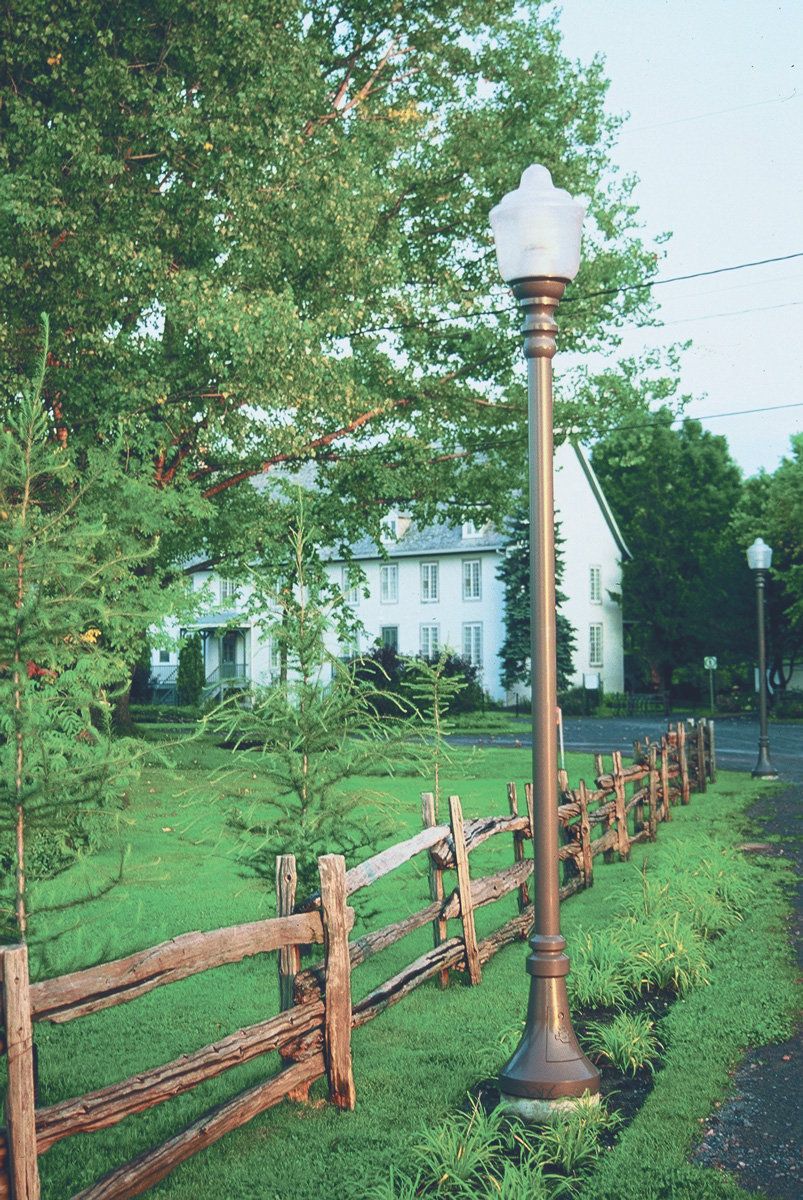

Inspiration
