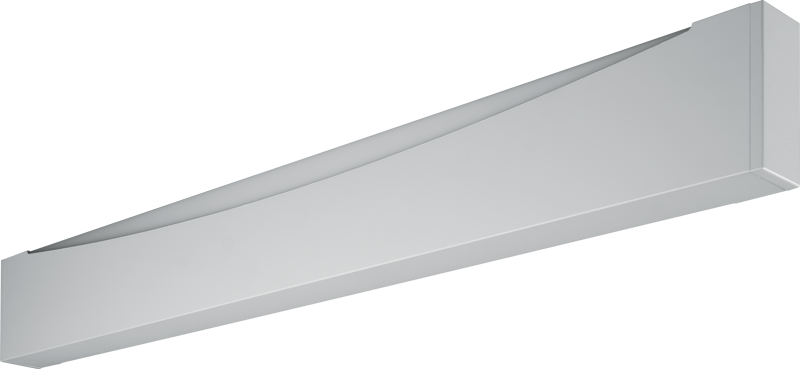

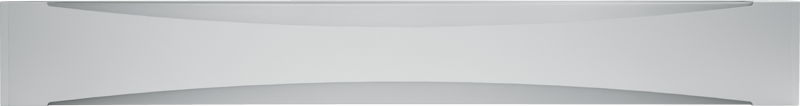

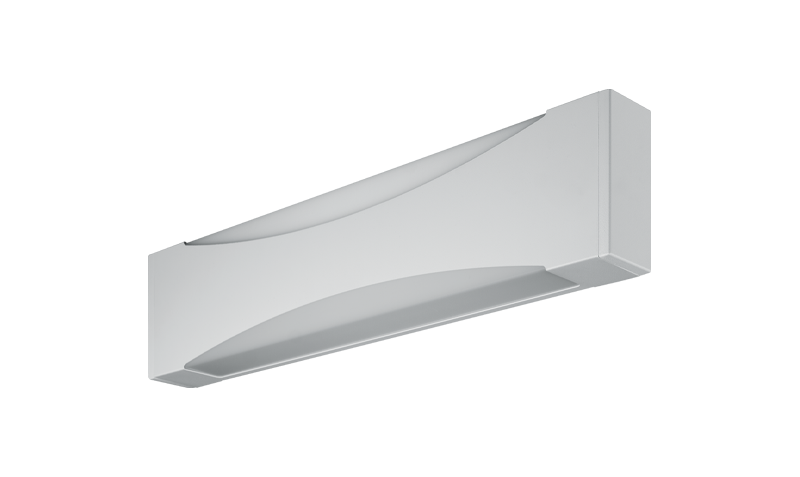

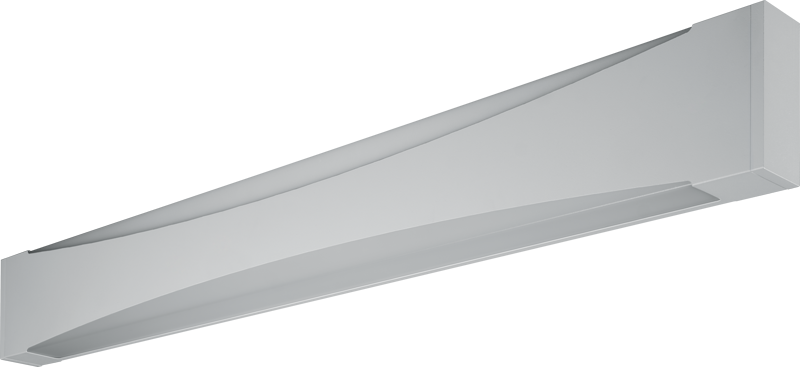

CW Contour Wall Mount
Features
- Contoured architectural form designed to bring comfort, versatility, and thoughtful functionality to nurse stations, vanities, and corridor
- Slim, ADA-compliant profile

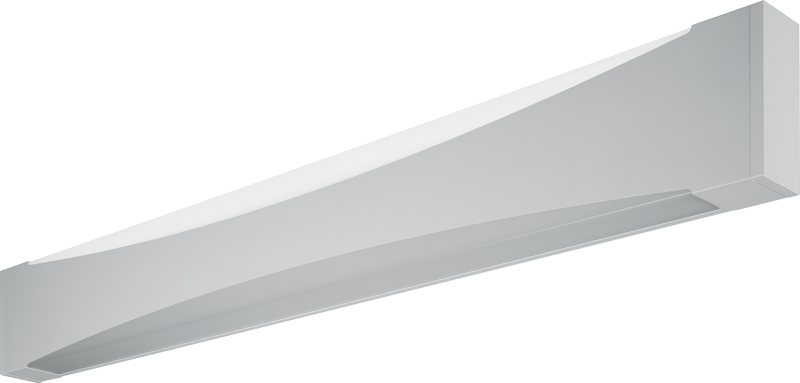

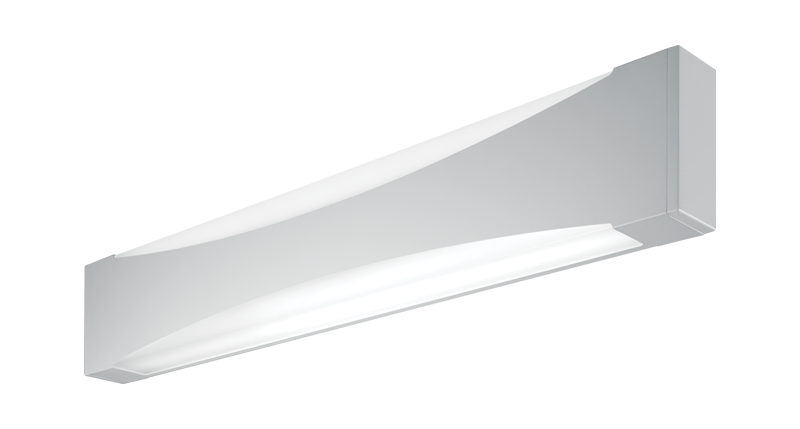

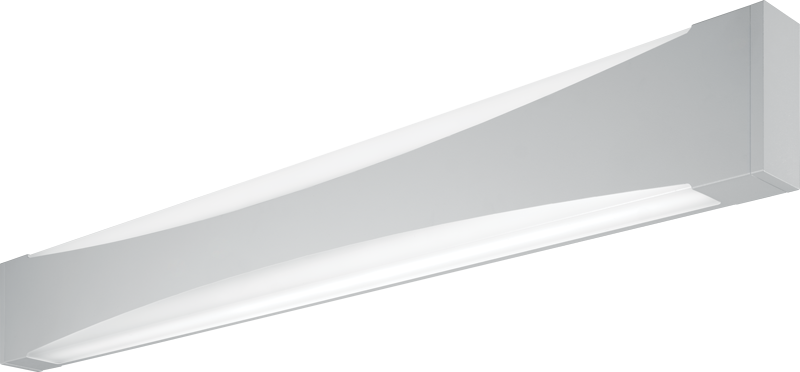

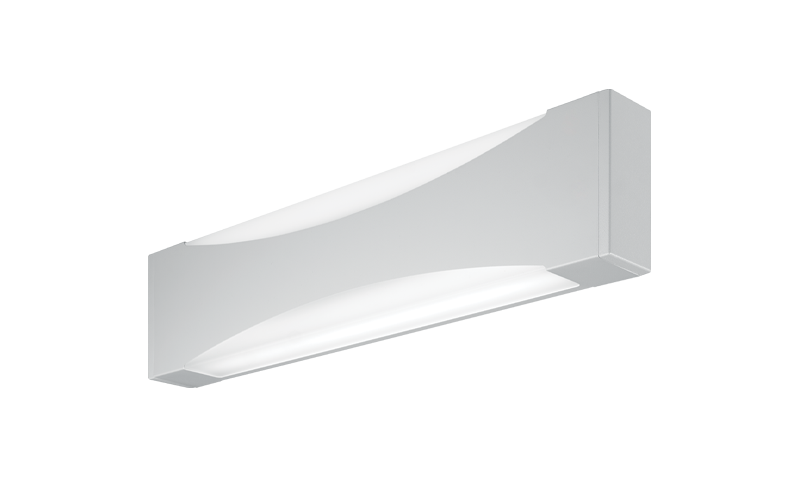

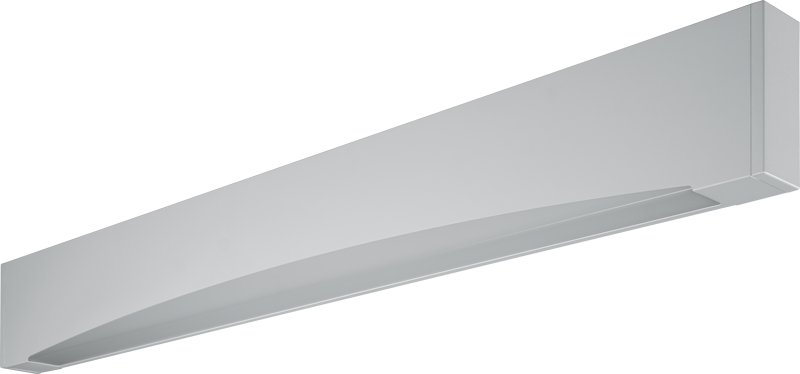

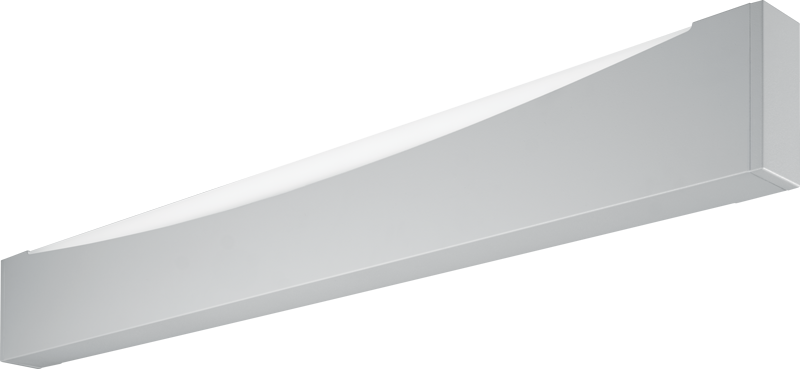

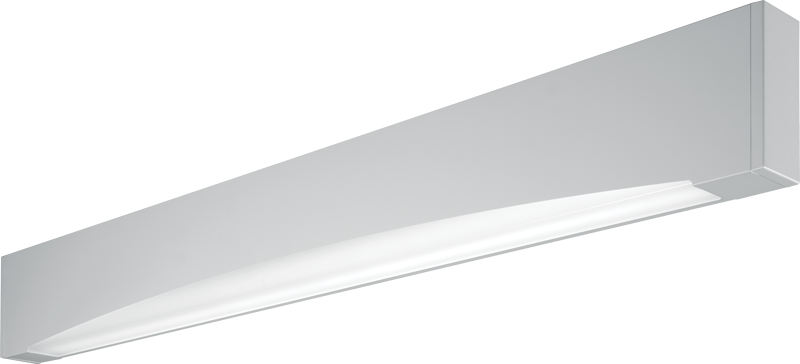

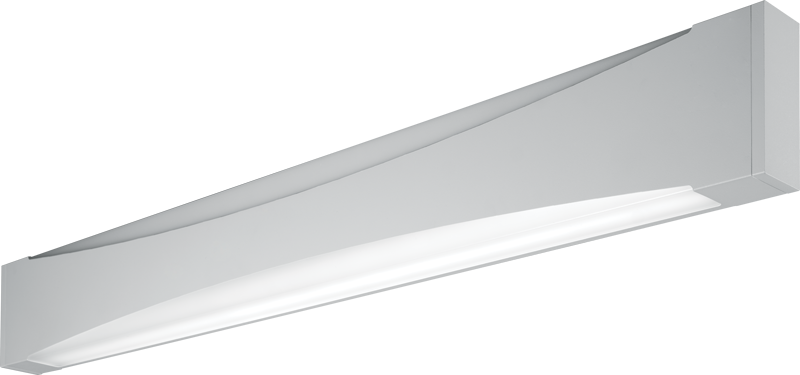

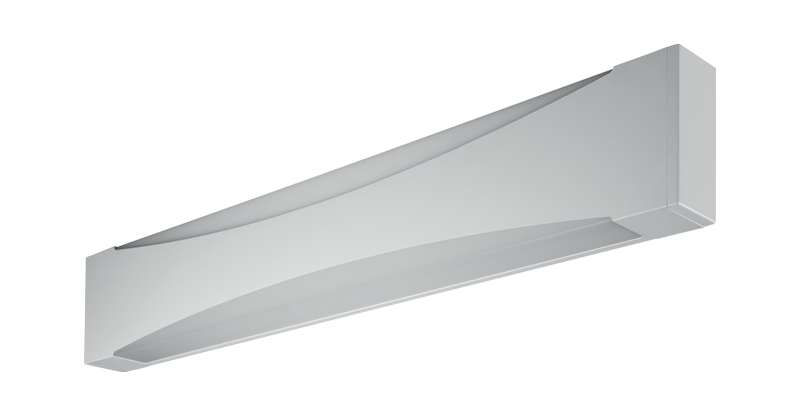

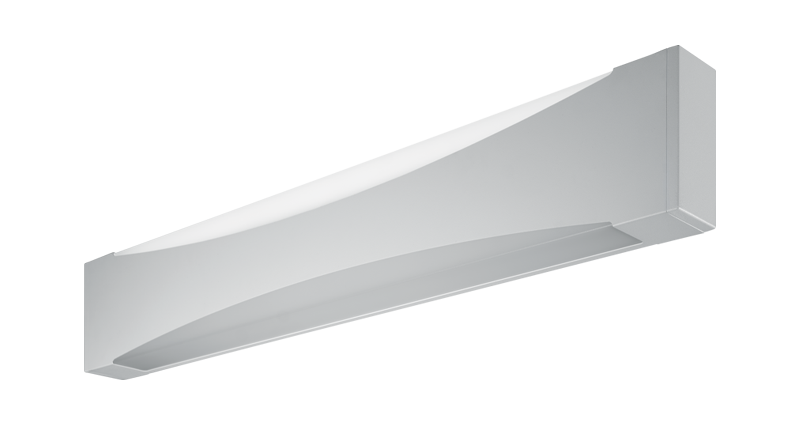

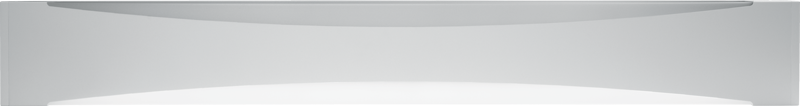

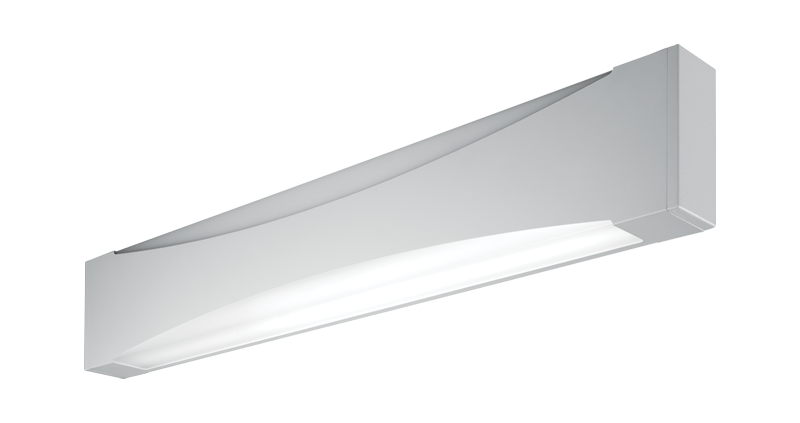

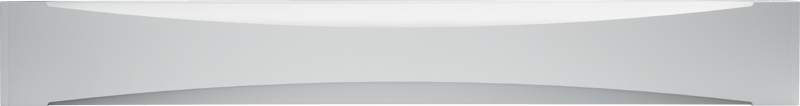

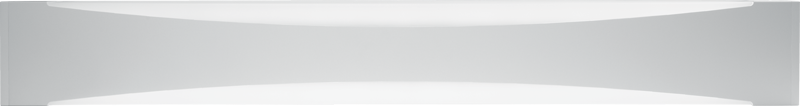

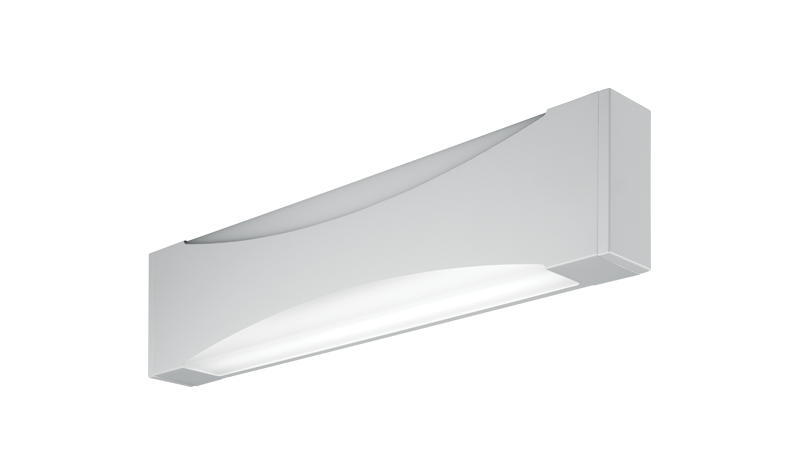

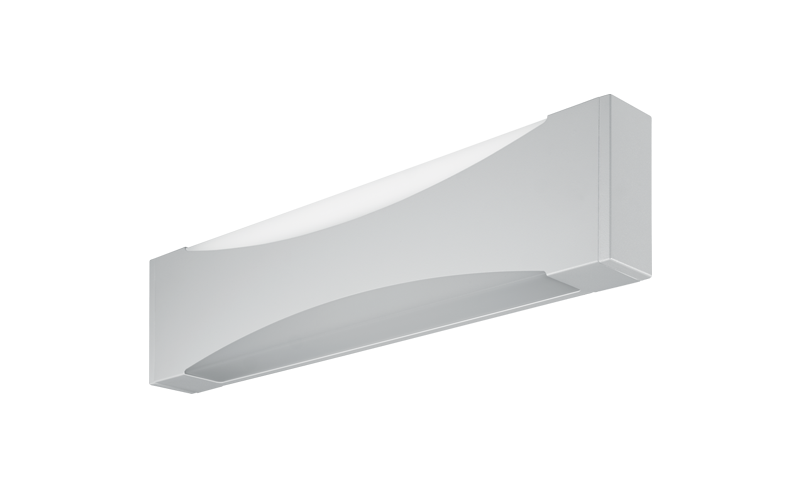

- Direct and indirect lighting with closed top or bottom options available
- Tamper-resistant screws are provided for vandal-prone areas
- Six standard finish options and a wide selection of custom colors complement architectural elements
- Create a consistent look throughout the healthcare setting with the Contour Medical Series
- Support human-centric design with adaptive, individualized lighting using tunable white light
- Build America, Buy America and Buy American Act compliant
- Made Right Here® in the USA
Tools
Estimate fixture quantities and light levels.
Configure fixtures and streamline the ordering process.
Find your local agent or distributor.
Specifications
|
Housing |
20-gauge die-formed, welded C.R.S. with die-cast aluminum end caps. Tamper-resistant Torx Pin screws and (1) tamper-resistant tool provided. |
|
Shielding |
Diffuse matte acrylic, .080″ thick. |
|
Finish |
Textured anti-microbial matte white polyester TGIC powder coat bonded to phosphate-free, multi-stage pretreated metal. All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion. |
|
Electrical |
High-quality mid-power LED boards. L70 >72,000 hours per IES TM-21. 50/60 Hz constant current driver. |
|
Mounting |
Wall mounts over horizontal junction box, flush to wall. |
|
Listings |
• cCSAus certified as luminaire suitable for dry or damp locations. |
|
Warranty |
5-year limited warranty, see details |
Finishes
Black
Bronze
Nickel
Alum
Silver
White
200+ RAL Colors
